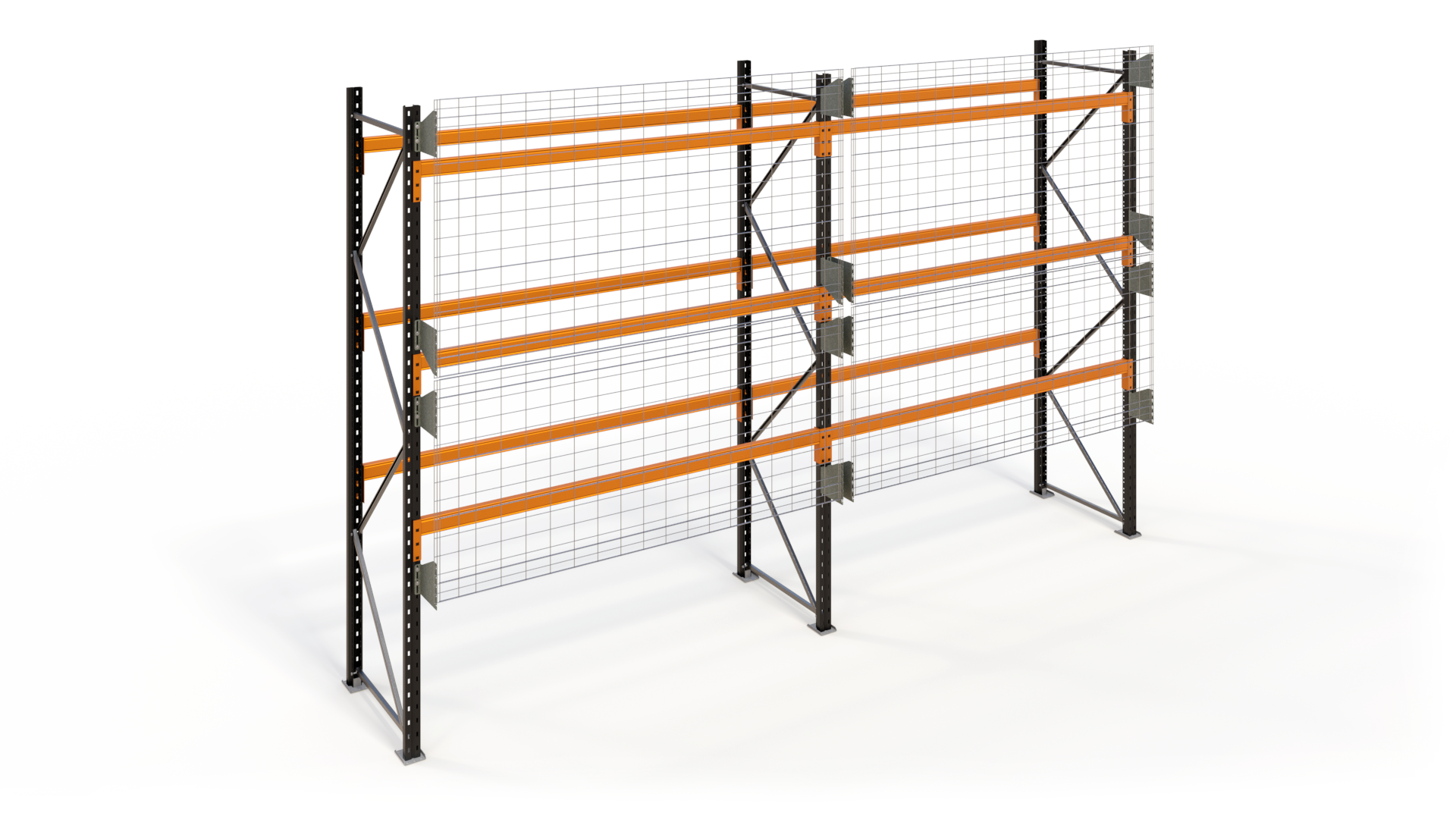

The MantaMESH backing system is an easy to install modular backing system designed to prevent items up to 25kg falling from racking to walkways below.
This product manual provides a comprehensive guide to:
1. Components: Learn how the components are packaged for easy handling, installation and maintenance.
2. Installation: Follow our simple 6-step installation process.
3. Inspection and maintenance: Follow the recommended inspection and maintenance procedures.
Your browser does not support the video tag.

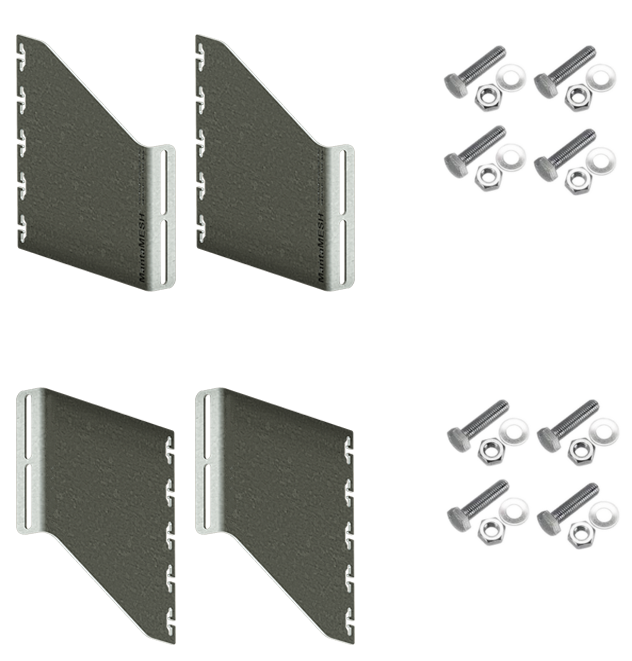

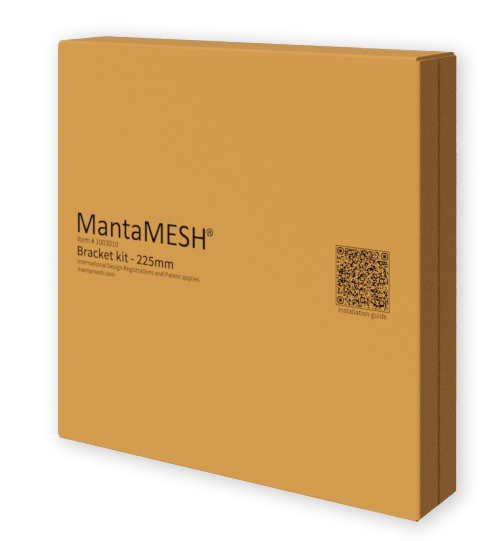

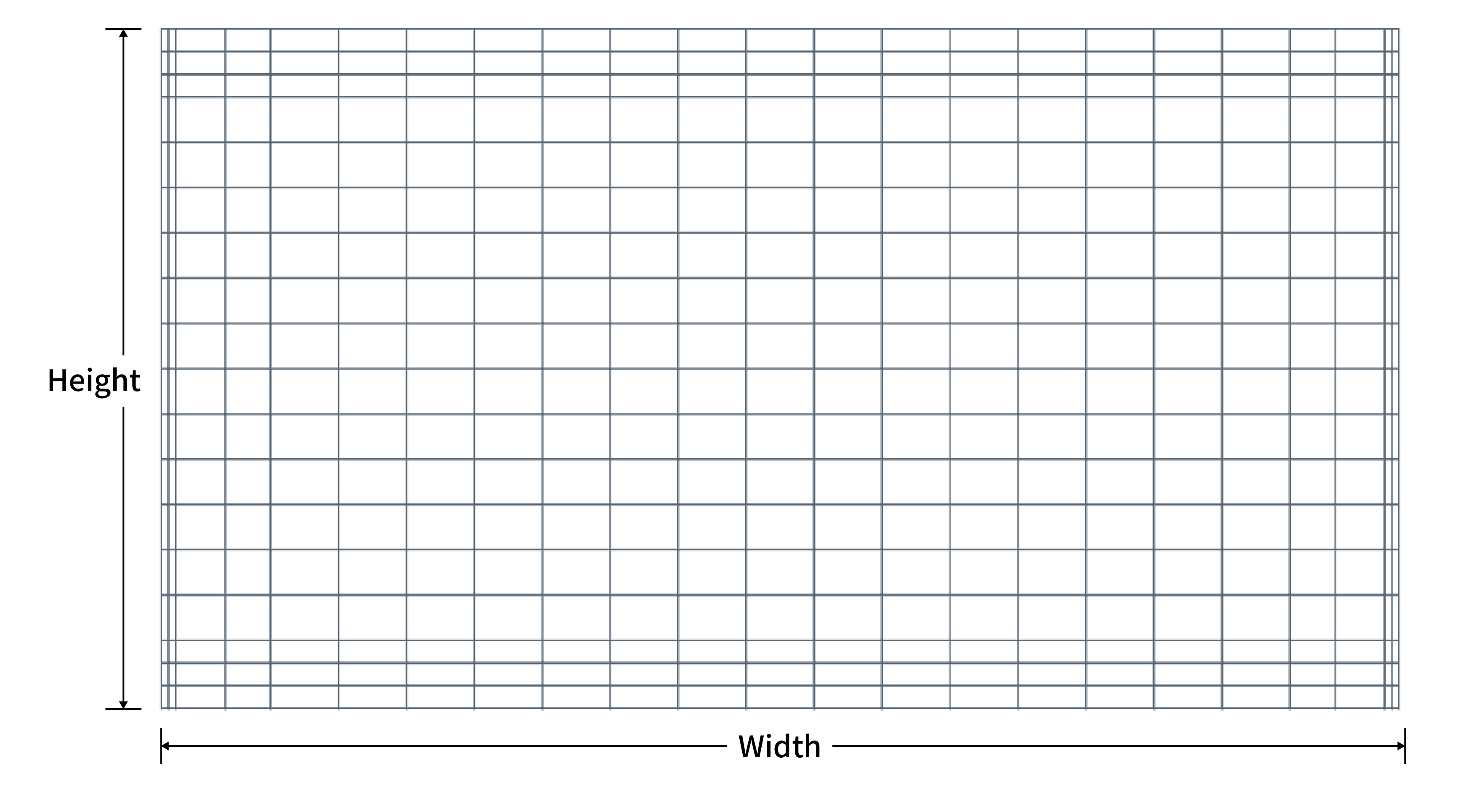

You will require one bracket kit for each panel.
Each bracket kit contains:
Installation tip: Secure the fixings on both top brackets (Torque: 25Nm).

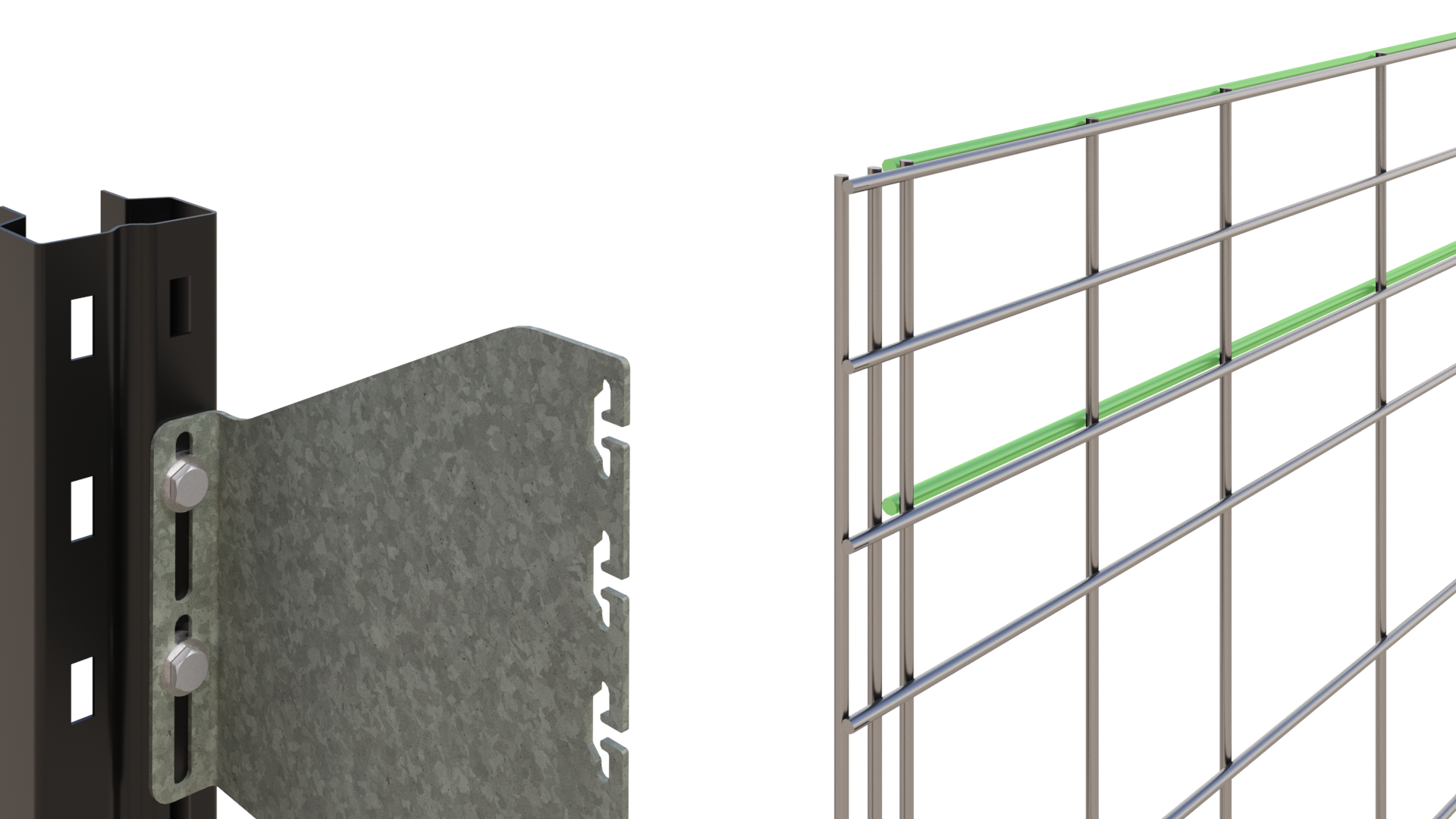

Your browser does not support the video tag. Intallation tip: Locate one of the six highlighted wire positions into the top slot.
Your browser does not support the video tag. Intallation tip: Locate one of the two highlighted wire positions into the top slot.
Installation tip: Hold in place with fixings, but do not fully tighten.
Installation tip: Locate one of the six highlighted wire positions into the bottom slot.
Installation tip: Locate one of the two highlighted wire positions into the bottom slot.
Installation tip: While pushing down to create tension, secure the fixings on both bottom brackets (Torque: 25Nm).
Installation tip: Start at the top of the racking assembly and work downwards, then continue the installation sequence from the top of the next bay.
Inspection
Conduct periodic inspections to ensure system integrity in line with your regular racking maintenance schedule, or at least annually.
Maintenance
If the MantaMESH backing system is damaged, replacement components should be installed immediately.
Thank you for choosing the MantaMESH easy to install modular backing system.
For more detailed instructions on installation, refer to our comprehensive installation guide.
